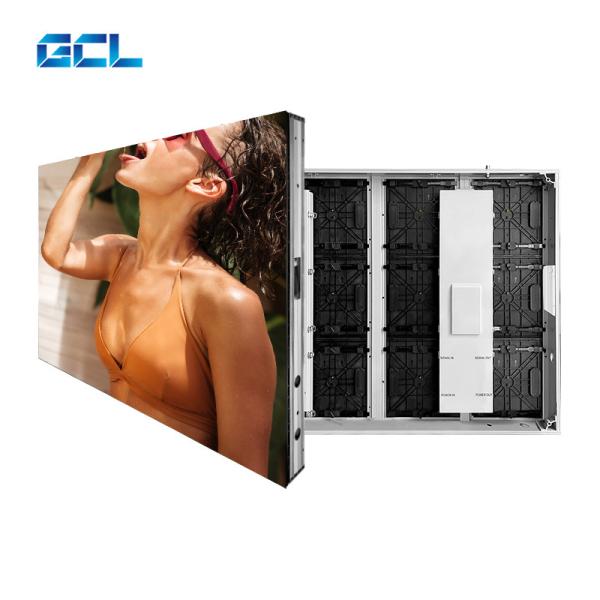

GCL P5 Advertising Publish Outdoor LED Display 140 View Angle And High Refresh Rate

Place of Origin : Guangdong, China

Model Number : Gsurface-III

Brand Name : GCL

MOQ : Min. order: 20

Price : Price to be discussed

Certification : EMC/CE/ROHS/CCC/FCC/BIS

Application : Outdoor

Type : LED

Color : FULL COLOR

Panel Size : 960x960mm, 960x960mm

Supplier Type : Original manufacturer, ODM, OEM

Media Available : datasheet, Photo

use : advertising publish, retail store, shopping mall, display of dishes, welcome display, exhibition hall, airport, subway, Restaurant & Hotel Supplies

Pixel Pitch : 5mm, 5mm, P3.91 P4.81 P5.92 P8

Specification : Digital Poster, Video Wall

Brightness : 6500nit, 6500nit, 6500nits

Lifespan (hours) : Over 10000H, Over 10000H

IP Rating : IP65, IP65

HS Code : 8528591090

Resolution : 160x160dots

View Angle（H/V） : 140/140 degree, 140/140 degree

Usage : Outdoor Waterproof

Protection level : IP65

Viewing angle : 140/140 Degree

Refresh rate : 1920Hz-3840Hz

LED chip : Nationstar

Cabinet material : Iron/die-casting

Control system : Novastar

Warranty : 3 Years

Contact Now

Product Details

GCL P5 Advertising Publish Outdoor LED Display 140 View Angle And High Refresh Rate

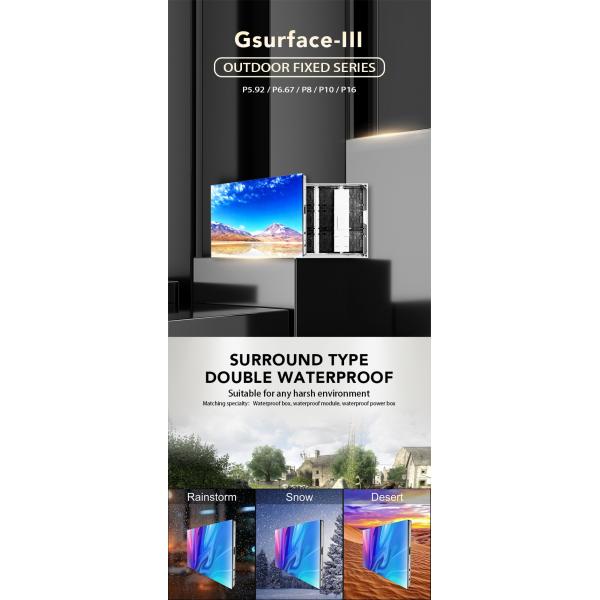

Parameters of Gsurface-III Series
Product	P5.92	P6.67	P8	P10	P10	P16
Pitch	5.92mm	6.67mm	8mm	10mm	10mm	10mm
Density (pixels/㎡)	28476	22477	15625	10000	10000	3906
LED Type	SMD2727	SMD2727	SMD2727	SMD2727	DIP346	DIP346
Brightness	6000nits	6000nits	6000nits	6500 nits	8000 nits	8000 nits
Scan Method	1/6	1/6	1/4	1/2	1/4	Static
Cabinet Size	W1280H960T100mm (Standard) W1280H640T100mm W640H960T100mm W640H640T100mm
Module Size	320*320mm
Module Size	320*320mm
Cabinet Material	Profile Aluminum
Cabinet Material	Profile Aluminum
Cabinet Weight	35.5kg	35.5kg	35.5kg	35.5kg	37.5kg	37.5kg
Protection Level	IP65
Protection Level	IP65
Cabinet Maintenance	100% Front & Rear
Max Power Consumption	750 w/㎡	750 w/㎡	750 w/㎡	750 w/㎡	450 w/㎡	450 w/㎡
Average Power Consumption	260 w/㎡	260 w/㎡	260 w/㎡	260 w/㎡	150 w/㎡	150 w/㎡
Refresh Rate(Hz)	2880Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Grey Scale	65536
Viewing Angle	H140°, V140°
Voltage	AC100-240V (50-63HZ)
Working Temperature	-30℃ ~ +70℃
Working Humidity	10%-90%RH
Color Temperature	6500-9500K
Certifications	EMC/CE/ROHS/CCC/FCC/BIS
Waterproof Level	IP65
Working Environment	Outdoor
Installation Type	Fixed installation

Why Choose Us?

Shenzhen GCL Electronics CO.,Ltd, founded in 1999 with the registered capital of 10 million dollars, has been a professional manufacturer of LED screen for more than 21 years. GCL is a high-tech enterprise which integrates researching, development,manufacturing, engineering, installation, sales and aftersales services. Headquartered in Shenzhen, China.GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 30 high-speed production machines with high accuracy and more than 10 modern assembly lines. The annual capacity of GCL is over two hundred millions USD and it has been granted with more than ten LED application products-related patents and certifications in compliance with the ISO9001, ISO1400 and ISO18001 standards. Our products have also been certified with multiple standards, including EMC, CE, ROHS, CCC, FCC, ISO. GCL has finished more than 10,000 led screen and led lighting projects all over the world, including the international government projects in 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc.

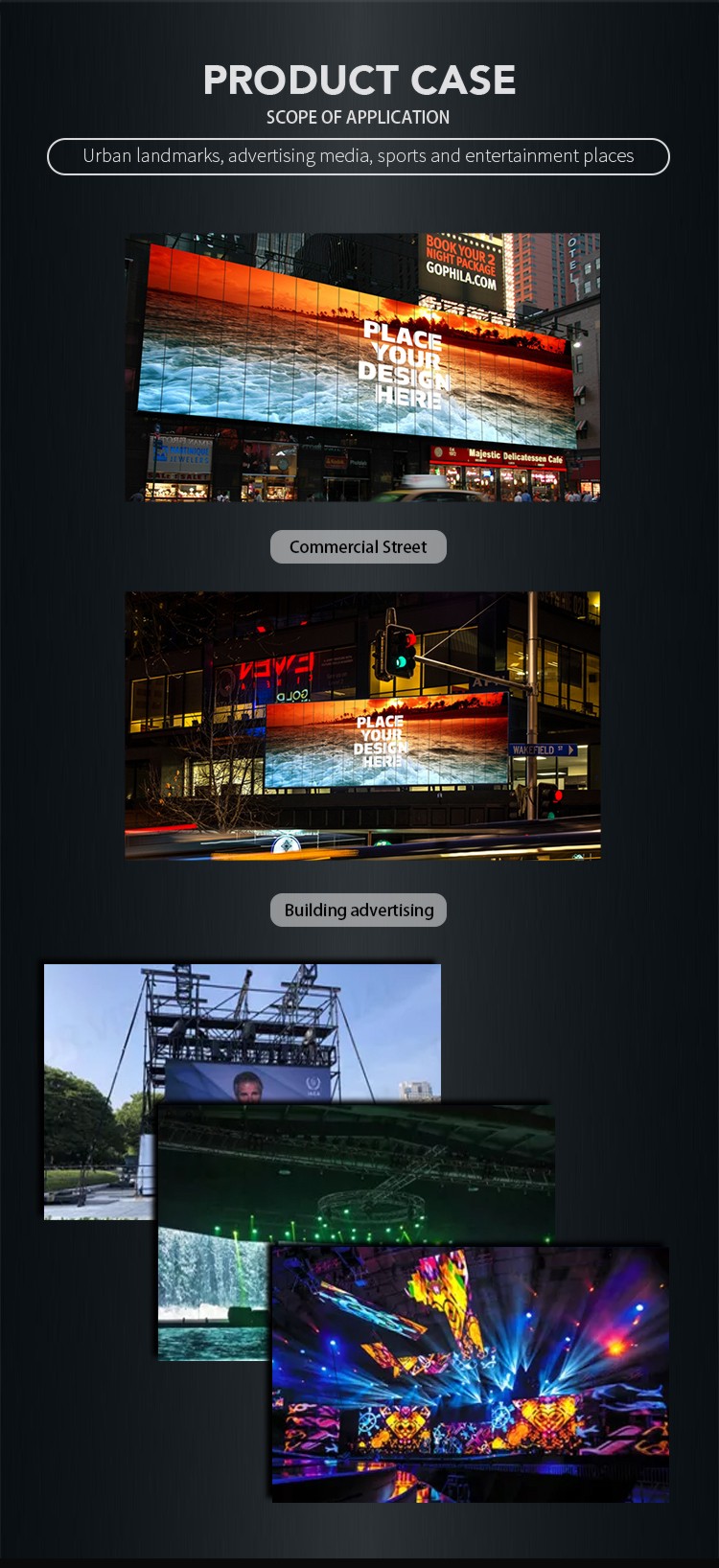

Customer case
